Pneumatic Active Disc Brakes

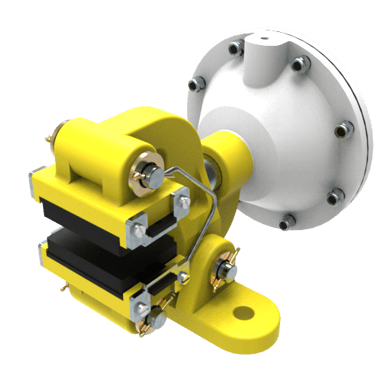

A13 SERIES PNEUMATIC ACTIVE DISC BRAKES
AIR APPLIED - SPRING RELEASED
BRAKING TORQUE CALCULATIONS
Mb = Fb x a x ((Do-0.056)/2) = Nm
WHERE:
Mb = BRAKING TORQUE IN [Nm]
Fb = BRAKING FORCE IN [N]
a = NO OF BRAKES ACTING ON THE DISC
Do = BRAKE DISC OUTER DIAMETER IN [m]

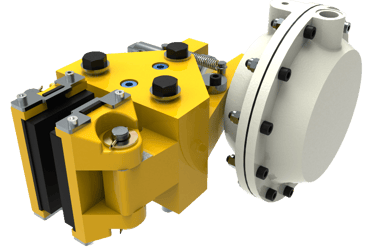

C.. SERIES PNEUMATIC ACTIVE DISC BRAKES
AIR APPLIED - SPRING RELEASED
BRAKING TORQUE CALCULATIONS
Mb = Fb x a x((Do-0.072)/2) = Nm
WHERE:
Mb = BRAKING TORQUE IN [Nm]
Fb = BRAKING FORCE IN [N]
a = NO OF BRAKES ACTING ON THE DISC
Do = BRAKE DISC OUTER DIAMETER IN [m]

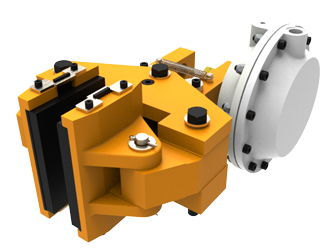

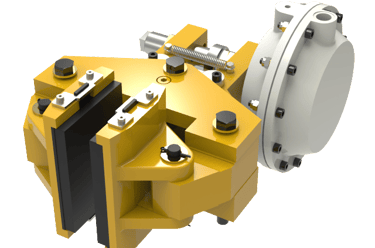

F.. SERIES PNEUMATIC ACTIVE DISC BRAKES
AIR APPLIED - SPRING RELEASED
BRAKING TORQUE CALCULATIONS
Mb = Fb x a x((Do-0.106)/2) = Nm
WHERE:
Mb = BRAKING TORQUE IN [Nm]
Fb = BRAKING FORCE IN [N]
a = NO OF BRAKES ACTING ON THE DISC
Do = BRAKE DISC OUTER DIAMETER IN [m]

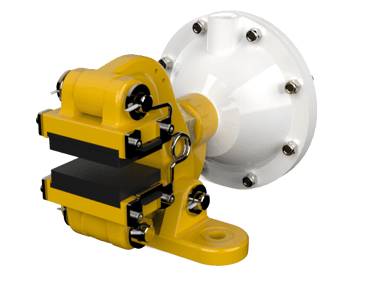

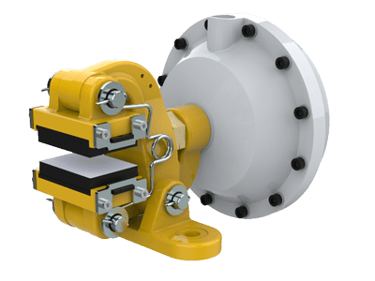

Pneumatic Failsafe Disc Brakes

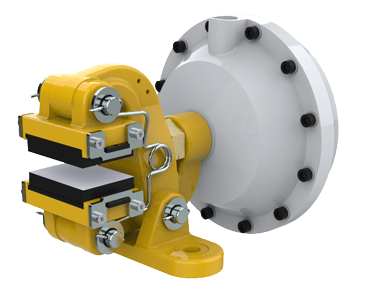

A13 SERIES PNEUMATIC FAILSAFE DISC BRAKES
SPRING APPLIED - AIR RELEASED
BRAKING TORQUE CALCULATIONS
Mb = Fb x a x ((Do-0.056)/2) = Nm
WHERE:
Mb = BRAKING TORQUE IN [Nm]
Fb = BRAKING FORCE IN [N]
a = NO OF BRAKES ACTING ON THE DISC
Do = BRAKE DISC OUTER DIAMETER IN [m]

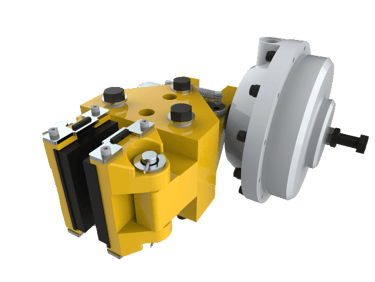

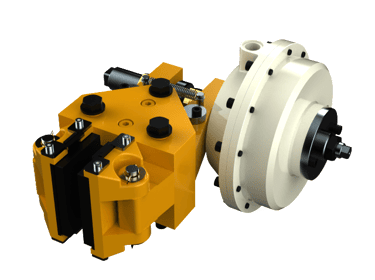

C.. SERIES PNEUMATIC FAILSAFE DISC BRAKES
SPRING APPLIED -AIR RELEASED
BRAKING TORQUE CALCULATIONS
Mb = Fb x a x((Do-0.072)/2) = Nm
WHERE:
Mb = BRAKING TORQUE IN [Nm]
Fb = BRAKING FORCE IN [N]
a = NO OF BRAKES ACTING ON THE DISC
Do = BRAKE DISC OUTER DIAMETER IN [m]

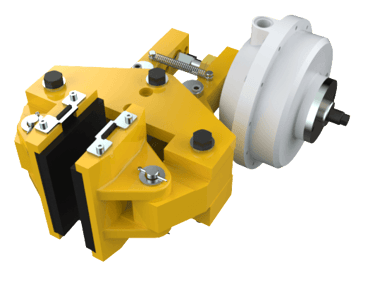

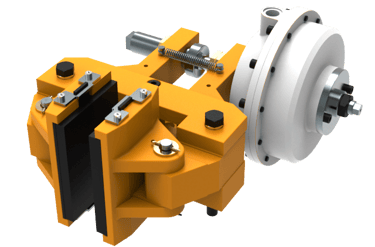

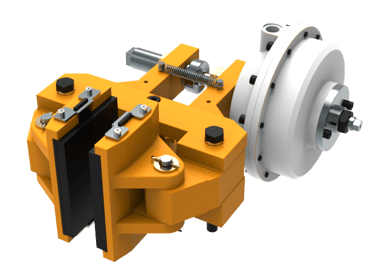

F.. SERIES PNEUMATIC FAILSAFE DISC BRAKES
SPRING APPLIED -AIR RELEASED
BRAKING TORQUE CALCULATIONS
Mb = Fb x a x((Do-0.106)/2) = Nm
WHERE:
Mb = BRAKING TORQUE IN [Nm]
Fb = BRAKING FORCE IN [N]
a = NO OF BRAKES ACTING ON THE DISC
Do = BRAKE DISC OUTER DIAMETER IN [m]

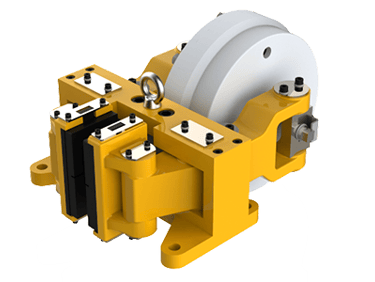

G.. SERIES PNEUMATIC FAILSAFE DISC BRAKES
SPRING APPLIED -AIR RELEASED
BRAKING TORQUE CALCULATIONS
Mb = Fb x a x((Do-0.13)/2) = Nm
WHERE:
Mb = BRAKING TORQUE IN [Nm]
Fb = BRAKING FORCE IN [N]
a = NO OF BRAKES ACTING ON THE DISC
Do = BRAKE DISC OUTER DIAMETER IN [m]
