Manual Disc Brakes

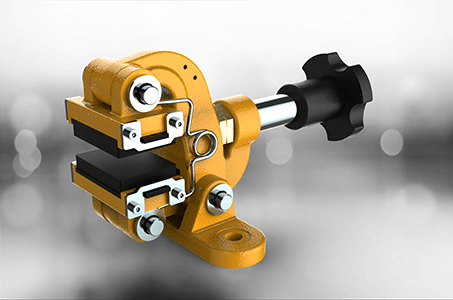

A13H180
Hand Knob Operated
Maximum Clamping Force (Fc) = 1425N
Maximum Braking Force (Fb) = 1140N
Brake Disc Thickness = 13mm
Brake Disc Diameter = >200mm

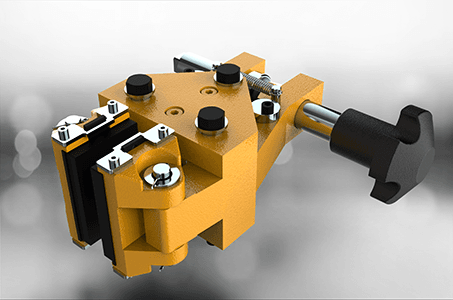

C..H180
Hand Knob Operated
Maximum Clamping Force (Fc) = 3013N
Maximum Braking Force (Fb) = 2410N
Brake Disc Thickness mm = 13,15,20,25,30,49
Brake Disc Diameter = >300mm

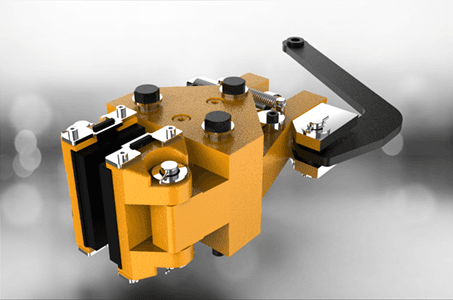

C..M90
Lever Operated
Maximum Clamping Force (Fc) = 1507N
Maximum Braking Force (Fb) = 1206N
Brake Disc Thickness mm = 13,15,20,25,30,49
Brake Disc Diameter = >300mm
