Pneumatic Active Disc Brakes

A13 Series

Calculation of Braking Torque:

Formula: Mb = Fb • a • ((Do-0.056)/2) = Nm

Where:

Mb = Braking Torque in [Nm]

Do = Brake Disc Outer Diameter in [m]

Fb = Braking Force in [N]

a = No of Brakes acting on the brake disc

Model: A13PA047

Type: Air Applied - Spring Released

Disc thicness: 13mm

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 385N

Braking Force [Fb] at 5bar : 308N

Usable brake disc outer diameter [Do] : ≥ 200mm

Air Consumption at full stroke : 60cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 120mm

Approx weight of the unit : 5.3kg

Datasheet available on Request

Model: A13PA063

Type: Air Applied - Spring Released

Disc thicness: 13mm

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 693N

Braking Force [Fb] at 5bar : 554N

Usable brake disc outer diameter [Do] : ≥ 200mm

Air Consumption at full stroke : 70cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 120mm

Approx weight of the unit : 5.8kg

Datasheet available on Request

Model: A13PA125

Type: Air Applied - Spring Released

Disc thicness: 13mm

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 808N

Braking Force [Fb] at 5bar : 647N

Usable brake disc outer diameter [Do] : ≥ 200mm

Air Consumption at full stroke : 150cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 120mm

Approx weight of the unit : 4.7kg

Datasheet available on Request

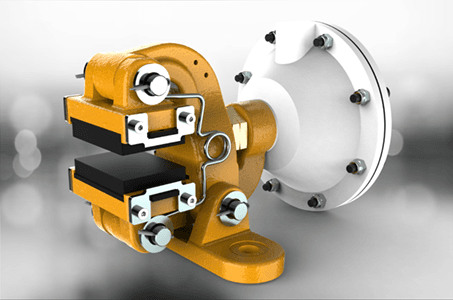

Model: A13PA150

Type: Air Applied - Spring Released

Disc thicness: 13mm

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 1323N

Braking Force [Fb] at 5bar : 1058N

Usable brake disc outer diameter [Do] : ≥ 200mm

Air Consumption at full stroke : 150cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 120mm

Approx weight of the unit : 5.2kg

Datasheet available on Request

C Series

Calculation of Braking Torque:

Formula: Mb = Fb • a • ((Do-0.072)/2) = Nm

Where:

Mb = Braking Torque in [Nm]

Do = Brake Disc Outer Diameter in [m]

Fb = Braking Force in [N]

a = No of Brakes acting on the brake disc

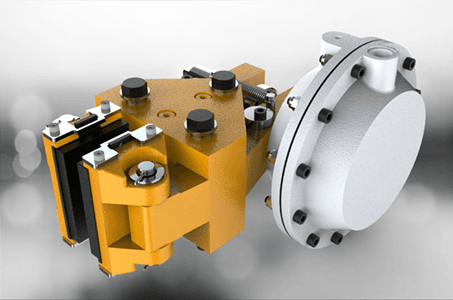

Model: C..PA125

Type: Air Applied - Spring Released

Disc thicness in mm: 13,15,20,25,30,40,48

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 3007N

Braking Force [Fb] at 5bar : 2405N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 125cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 11.5kg

Datasheet available on Request

Ordering Example: C15PA125, for 15mm thick brake disc

Model: C..PA150

Type: Air Applied - Spring Released

Disc thicness in mm: 13,15,20,25,30,40,48

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 4920N

Braking Force [Fb] at 5bar : 3936N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 150cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 13kg

Datasheet available on Request

Ordering Example: C15PA150, for 15mm thick brake disc

Model: C..PA180

Type: Air Applied - Spring Released

Disc thicness in mm: 13,15,20,25,30,40,48

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 1323N

Braking Force [Fb] at 5bar : 1058N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 300cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 14.5kg

Datasheet available on Request

Ordering Example: C15PA180, for 15mm thick brake disc

F Series

Calculation of Braking Torque:

Formula: Mb = Fb • a • ((Do-0.106)/2) = Nm

Where:

Mb = Braking Torque in [Nm]

Do = Brake Disc Outer Diameter in [m]

Fb = Braking Force in [N]

a = No of Brakes acting on the brake disc

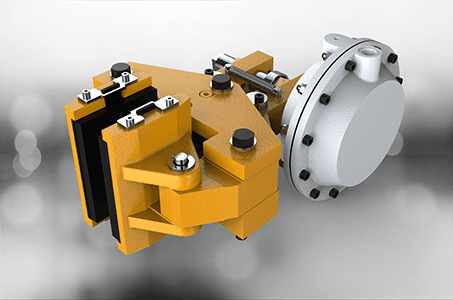

Model: F..PA150

Type: Air Applied - Spring Released

Disc thicness in mm: 25, 30

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 6613N

Braking Force [Fb] at 5bar : 5291N

Usable brake disc outer diameter [Do] : ≥ 400mm

Air Consumption at full stroke : 150cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 220mm

Approx weight of the unit : 14.5kg

Datasheet available on Request

Ordering Example: F25PA150, for 25mm thick brake disc

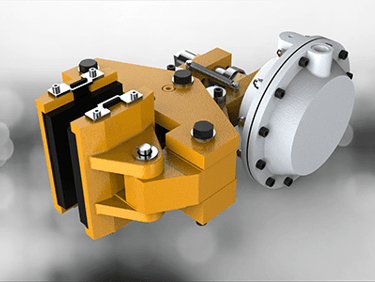

Model: F..PA180

Type: Air Applied - Spring Released

Disc thicness in mm: 25, 30

Operating Pressure : 1bar min...5bar max

Clamping Force [Fc] at 5bar : 12136N

Braking Force [Fb] at 5bar : 9706N

Usable brake disc outer diameter [Do] : ≥ 400mm

Air Consumption at full stroke : 300cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 220mm

Approx weight of the unit : 15kg

Datasheet available on Request

Ordering Example: F25PA180, for 25mm thick brake disc

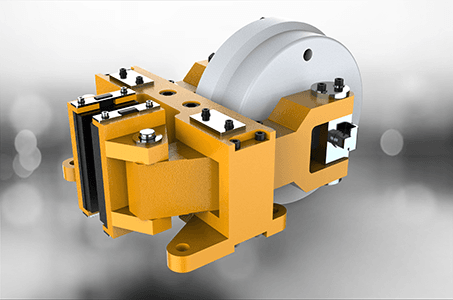

Pneumatic Failsafe Disc Brakes

A13 Series

Calculation of Braking Torque:

Formula: Mb = Fb • a • ((Do-0.056)/2) = Nm

Where:

Mb = Braking Torque in [Nm]

Do = Brake Disc Outer Diameter in [m]

Fb = Braking Force in [N]

a = No of Brakes acting on the brake disc

Model: A13PF150

Type: Spring Applied - Air Released

Disc thicness in mm: 13

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 662N

Braking Force [Fb] at 0bar : 530N

Usable brake disc outer diameter [Do] : ≥ 200mm

Air Consumption at full stroke : 180cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 120mm

Approx weight of the unit : 5.2kg

Datasheet available on Request

Model: A13PF250

Type: Spring Applied - Air Released

Disc thicness in mm: 13

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 1103N

Braking Force [Fb] at 0bar : 883N

Usable brake disc outer diameter [Do] : ≥ 200mm

Air Consumption at full stroke : 290cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 120mm

Approx weight of the unit : 7.5kg

Datasheet available on Request

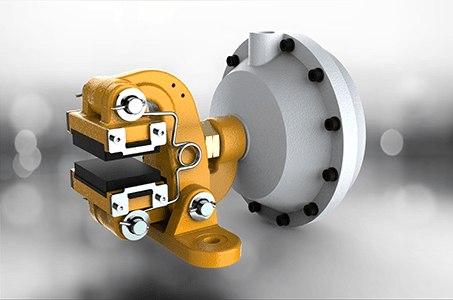

Model: A13PF400

Type: Spring Applied - Air Released

Disc thicness in mm: 13

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 1860N

Braking Force [Fb] at 0bar : 1490N

Usable brake disc outer diameter [Do] : ≥ 200mm

Air Consumption at full stroke : 180cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 120mm

Approx weight of the unit : 5.2kg

Datasheet available on Request

C Series

Calculation of Braking Torque:

Formula: Mb = Fb • a • ((Do-0.072)/2) = Nm

Where:

Mb = Braking Torque in [Nm]

Do = Brake Disc Outer Diameter in [m]

Fb = Braking Force in [N]

a = No of Brakes acting on the brake disc

Model: C..PF150

Type: Spring Applied - Air Released

Disc thicness in mm: 13,15,20,25,30,40,48

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 2472N

Braking Force [Fb] at 0bar : 1978N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 180cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 12kg

Datasheet available on Request

Ordering Example: C15PF150, for 15mm thick brake disc

Model: C..PF250

Type: Spring Applied - Air Released

Disc thicness in mm: 13,15,20,25,30,40,48

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 4143N

Braking Force [Fb] at 0bar : 3314N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 300cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 12kg

Datasheet available on Request

Ordering Example: C15PF250, for 15mm thick brake disc

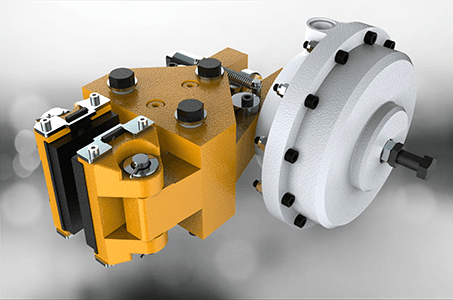

Model: C..PF400

Type: Spring Applied - Air Released

Disc thicness in mm: 13,15,20,25,30,40,48

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 6627N

Braking Force [Fb] at 0bar : 5302N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 300cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 12kg

Datasheet available on Request

Ordering Example: C15PF400, for 15mm thick brake disc

Model: C..PF400SAD With Automatic Brake Pad Wear Compensator

Type: Spring Applied - Air Released

Disc thicness in mm: 13,15,20,25,30,40,48

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 6627N

Braking Force [Fb] at 0bar : 5302N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 300cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 12kg

Datasheet available on Request

Ordering Example: C15PF400SAD, for 15mm thick brake disc

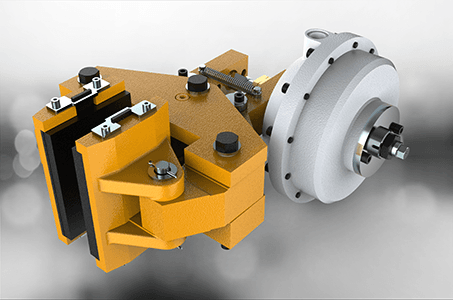

Model: C..PF600SAD With Automatic Brake Pad Wear Compensator

Type: Spring Applied - Air Released

Disc thicness in mm: 13,15,20,25,30,40,48

Brake Release Pressure : 5bar

Clamping Force [Fc] at 0bar : 9885N

Braking Force [Fb] at 0bar : 7908N

Usable brake disc outer diameter [Do] : ≥ 300mm

Air Consumption at full stroke : 300cc

Allowable wear on each brake pad : 5mm

Max Coupling / Disc Hub Outer Diameter : Do - 140mm

Approx weight of the unit : 12kg

Datasheet available on Request

Ordering Example: C15PF600SAD, for 15mm thick brake disc

F Series

Calculation of Braking Torque:

Formula: Mb = Fb • a • ((Do-0.106)/2) = Nm

Where:

Mb = Braking Torque in [Nm]

Do = Brake Disc Outer Diameter in [m]

Fb = Braking Force in [N]

a = No of Brakes acting on the brake disc

Model: F..PF400

Type: Spring Applied - Air Released (Failsafe)
Disc Thickness in mm : 25, 30
Brake Release Pressure: 5bar
Clamping Force [Fc] at 0bar: 9885N
Braking Force [Fb] at 0bar: 7908N
Datasheet available on Request

Usable brake disc outer diameter [Do]: ≥ 400mm
Max Coupling / Disc Hub outer diameter: Do-220mm
Air Consumption at fill stroke: 300cc
Allowable wear on each brake pad : 5mm
Approx weight: 14.5kg
Ordering Example: F25PF400, for 25mm thick brake disc.
