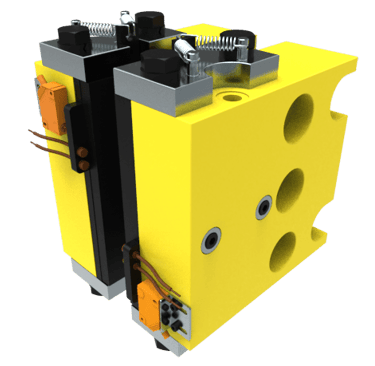

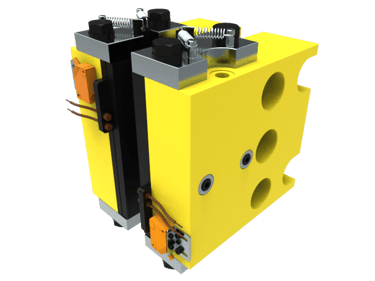

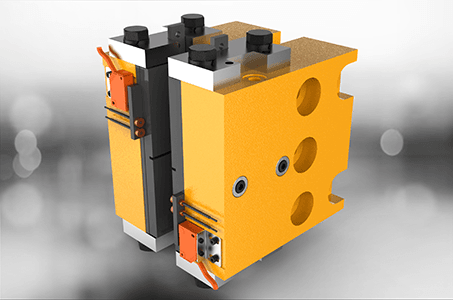

L-HA.. SERIES HYDRAULIC ACTIVE DISC BRAKES

HYDRAULIC APPLIED - SPRING RELEASED

BRAKING TORQUE CALCULATIONS

Mb = Fb x a x ((Do-PW)/2) = Nm

WHERE:

Mb = BRAKING TORQUE IN [Nm]

Fb = BRAKING FORCE IN [N]

a = NO OF BRAKES ACTING ON THE DISC

Do = BRAKE DISC OUTER DIAMETER IN [m]

PW = BRAKE PAD WIDTH IN [m]
